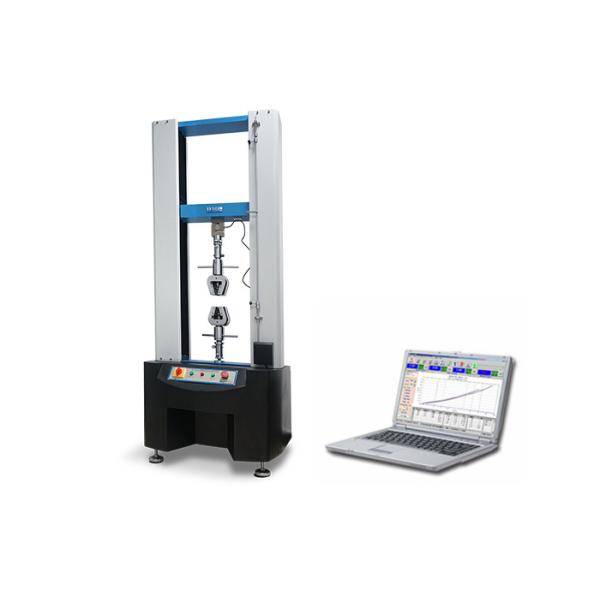

Programmable Universal Tensile Testing Machine With Computer Control

Name: Programmable Universal Tensile Testing Machine With Computer Control
Brand: Haida
Price: 1 USD

Quality Programmable Universal Tensile Testing Machine With Computer Control for sale

Brand Name : Haida

Model Number : HD-B615A-S

Certification : ISO

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow

Supply Ability : 300 Sets per Month Haida

Delivery Time : 20 days after order confirmed

Packaging Details : each set protected with resin fiber and PP film, then put into Strong wooden case with operation man

Product Name : universal testing machine

Frame capacity : 5000kg

Load accuracy : 0.5% F.S

Control system : PC with windows 7 system

Force reading : kgf, Ibf, N, KN, T etc

Horizontal test space : ≤400mm

Contact Now

Universal Tensile Testing Machines With Computer Control

HD-B615A-S Universal Test Machine.pdf

Programmable Universal Tensile Testing Machine With Computer Control

Product Description:

Universal Tensile Testing Machine is suitable to test tensile stress, compressive stress, shearing force, peeling force, and elongation of materials, components, and finished products. It is widely used in controling material quality.

Standard Features

Item	Description
Frame capacity	5000kg
Load cell brand	Germany brand load cell for high accuracy 5000kg (1000,2000kg are optional)
Load accuracy	0.5% F.S
Control system	PC with windows 7 system
Motor	Panasonic servo motor w/AC variable speed drive system, high-precision mechanical ball screw rod
Force reading	kgf, Ibf, N, KN, T etc
Vertical test space	1100mm including fixture
Horizontal test space	≤400mm
Test speed	0.1~300mm/min (adjustable)
Software	TM 2101
Curves display	Load- elongation, Elongation-time, Time-elongation, Stress-strain
Data display	Max. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm²) etc…
Safety features	E-Stop Over-load protection Upper and lower limit switches Load sensor with automatic retreat

APPLICATIONS

Tested sample: laminated materials, wood, leather, rubber & plastic, metal material, etc.
Different test with different grips: tensile, peel, tear, heat seal, adhesive, bend and open force.
Deformation under defined load: Test deformation under defined load of tested sample
Load under defined deformation: Test load under defined deformation of tested sample
Software can issue word/excel report with results for max. force, elongation, tensile strength, peel strength, tear strength, compression strength, etc.

Adhesives Tape/Pressure Sensitive Tape

EN 1719: Loop Tack Test
ASTM D3654: Shear Adhesion Test
ASTM D3759: Tensile &Elongation Test
FTM: 180&90 Degree Peel Test, Loop Tack
EN 1939, ASTM D3330: 180&90 Degree Peel Test
ISO 11339, ASTM D1876, ASTM F2256: T-type Peel Test

Software

Programmable Universal Tensile Testing Machine With Computer Control

Our company Introduction:
HAIDA INTERNATIONAL is a professional manufacturer of various kinds of testing equipments over 24 years. HAIDA products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.
